J-Prague

Multideck Cabinets » Remote Multidecks » J-Prague

J-Prague*

J-Prague*


J-Prague*

J-Prague*

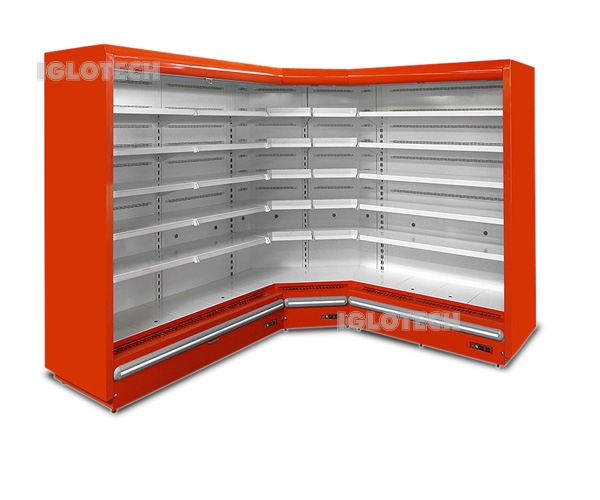

J-Prague with Corner unit*

J-Prague with Corner unit*

J-Prague

J-Prague

J-Prague Corner

J-Prague Corner

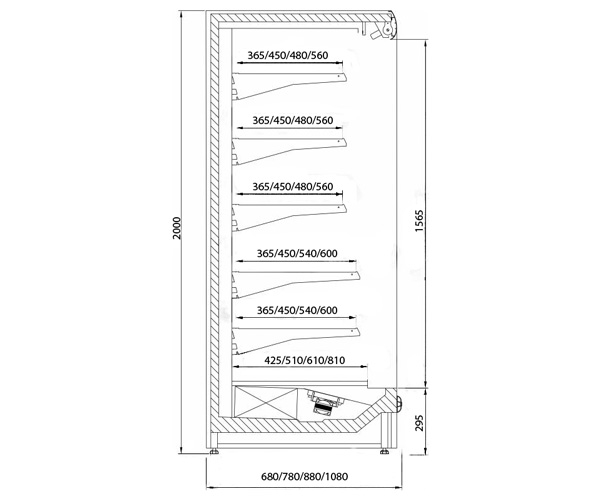

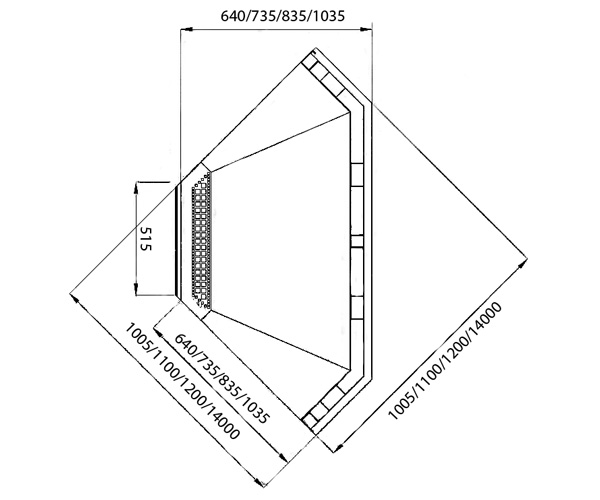

Technical parameters:

Models

Dimension [mm]

H x W x D

Display surface [m²]Shelves with low baseCondensing unitWeight [kg]
J-Prague 120 2000 x 1200* x 680/780/880/1080 2,6/3,2/3,8/4,5 6 external 190/220/230/240
J-Prague 150 2000 x 1500* x 680/780/880/1080 3,3/3,9/4,7/5,5 6 external 240/260/270/280
J-Prague 180 2000 x 1800* x 680/780/880/1080 3,9/4,7/5,6/6,6 6 external 280/320/340/360
J-Prague 200 2000 x 1980* x 680/780/880/1080 4,3/5,2/6,1/7,4 6 external 320/340/350/380
J-Prague 240 2000 x 2400* x 680/780/880/1080 5,2/6,3/7,5/8,9 6 external 360/370/380/390
J-Prague 270 2000 x 2700* x 680/780/880/1080 5,9/7,1/8,5/10,0 6 external 390/420/430/450
J-Prague 300 2000 x 3000* x 680/780/880/1080 6,6/8,1/9,6/11,0 6 external 430/450/470/500
J-Prague 375 2000 x 3750* x 680/780/880/1080 8,3/10,1/12,0/12,8 6 external 530/560/580/620
J-Prague Corner 70 2000 x 1005 x 640 3,3 6 external 180
J-Prague Corner 80 2000 x 1100 x 735 3,9 6 external 200
J-Prague Corner 90 2000 x 1200 x 835 4,7 6 external 210
J-Prague Corner 110 2000 x 1400 x 1035 5,5 6 external 230

* - dimensions without side walls - set of side walls is 100mm





Description:

  • temperature range +2 / +8°C
  • preferred ambient temperature +16 / +25°C
  • power supply 230V / 50Hz
  • prepared to work with external condensing unit
  • ecological polyurethane insulation
  • interior and shelves in white colour
  • body made of powder coated steel - choice of colours
  • side walls - full, with glass or with mirror stainless steel sheet
  • side walls colour - choice of colours
  • night blind - manual
  • adjustable shelves
  • price strips
  • LED interior top lighting
  • electronic control with digital temperature display
  • automatic defrost
  • adjustable legs
  • 1 year full warranty service and after warranty service provided



Available options:

  • multiplexing
  • body colours - optional colours
  • side walls colours - optional colours
  • profile with hooks (instead of one row of shelves)
  • back panel made of stainless steel
  • shelves made of stainless steel
  • base shelves made of stainless steel
  • shelf edge risers - wired or perspex
  • meat hooks
  • side LED lights
  • LED lights under each shelf
  • defrost heaters in evaporator
  • J-Prague Plus - height 2.25m with one more shelf level



Choice of colours:





Optional colours:



* - Picture above presents unit with either some or all available extras. Please note that the look of basic version of cabinet, or one of your choice, may vary from presented.
