Mega Line

Ice Makers » Mega Line

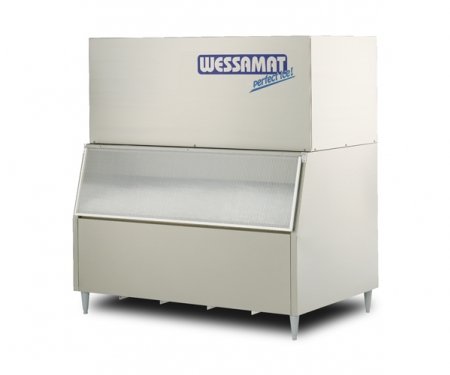

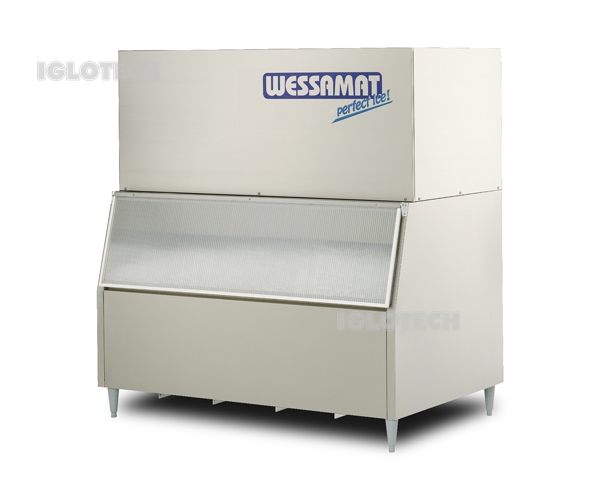

Z 2000 W with B 750 storage bin

Z 2000 W with B 750 storage bin

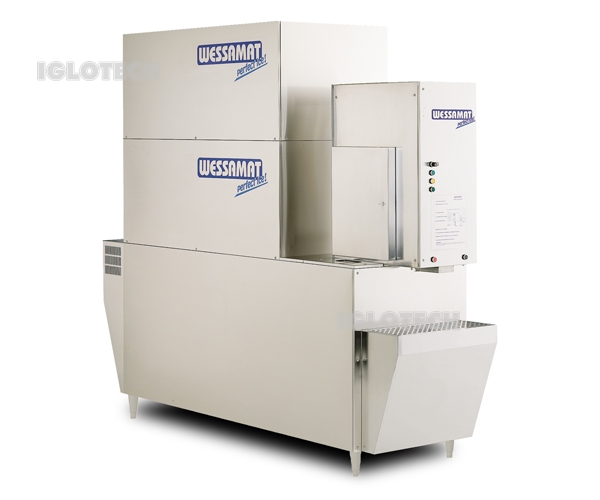

Two Z 2005 W units on D 750 dispenser

Two Z 2005 W units on D 750 dispenser

Hollow Ice Cone

Hollow Ice Cone


Technical parameters:

Models

Dimension [mm]

H x W x D

Output [kg/day]Storage Capacity [kg]Weight [kg]
Z 2000 L 600 x 1700 x 850 800 - 245
Z 2000 W 600 x 1700 x 850 800 - 245
B 750 1095 x 1700 x 1005 - 560 150
Z 2005 L 600 x 1700 x 850 800 - 245
Z 2005 W 600 x 1700 x 850 800 - 245
D 705 2110 x 935 x 3045 - 480 410
D 1005 2100 x 1920 x 2845 - 680 1000
D 2005 2100 x 1920 x 4095 - 1100 1100

Ice-making system: Centrifugal technology

Model designations:

  • B = storage bin
  • D = storage bin with dispenser



Cooling:

  • L = air-cooled
  • W = water-cooled



Description:

  • stainless steel housing
  • power supply 400V / 50Hz
  • recommended ambient temperature for air cooled units +10 to +30°C
  • recommended ambient temperature for water cooled units +10 to +45°C
  • models D 705, D 1005, D 2005: storage bin/dispenser with automatic loosening device and volume controlled filling unit 2-5kg
  • 1 year full warranty service and after warranty service provided



Available options:

  • For the reduction of the cooling water consumption Z 2000 W and Z 2005 W are available with a cooling tower or for connection to a water chiller.





Performance data of all models at ambient temperature of 15°C, water temperature of 10°C (air-cooled appliances) and condensing temperature of 20°C (water-cooled appliances). The capacity of the storage bins and dispensers in kg represents the complete utilization of the entire bin volume available.
