Micro Cubes

Ice Makers » Micro Cubes

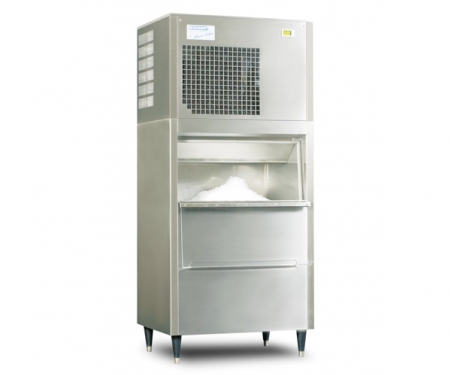

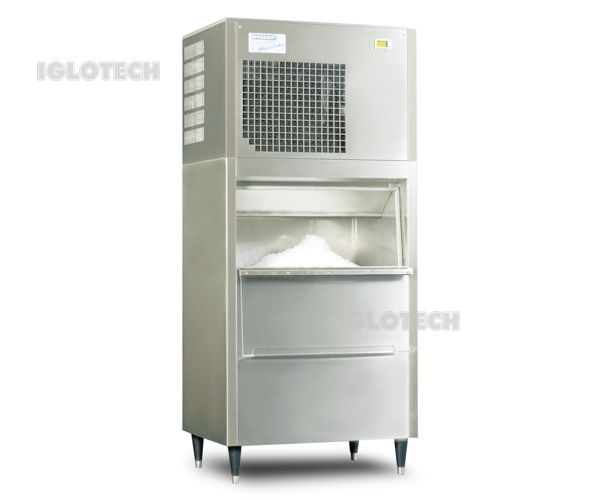

Micro Cubes M 200 L

Micro Cubes M 200 L


7x7x7mm Micro Cubes

7x7x7mm Micro Cubes


Technical parameters:

Models

Dimension [mm]

H x W x D

Output [kg/day]Storage Capacity [kg]Weight [kg]
M 120 L 1690 x 605 x 605 120 100 123
M 120 W 1690 x 605 x 605 120 100 121
M 120 Z 1690 x 605 x 605 120 100 104
M 200 L 1795 x 805 x 605 200 175 151
W 200 W 1795 x 805 x 605 200 175 147
W 200 Z 1795 x 805 x 605 200 175 121
M 400 L 2145 x 805 x 605 400 250 185
M 400 W 2145 x 805 x 605 400 250 171
M 400 Z 2145 x 805 x 605 400 250 136
M 800 LP* 540 x 800 x 605 800 * 140
M 800 WP* 540 x 800 x 605 800 * 144
M 800 ZP* 540 x 800 x 605 800 * 94

* - production unit without storage bin, suitable storage bins (with and without ice transport cart) available.

Ice-making system: Freezing cylinder with spiral conveyor and pressing core.

Type of ice:

  • 7 x 7 x 7 mm micro cubes



Cooling:

  • L = air-cooled
  • W = water-cooled
  • Z = connection to existing central cooling system



Description:

  • stainless steel housing
  • power supply 400V / 50Hz
  • recommended ambient temperature for air cooled units +10 to +30°C
  • recommended ambient temperature for water cooled units +10 to +45°C
  • 1 year full warranty service and after warranty service provided



Available options:

  • Models L can be prepared for attachment to a remote condenser.



Installation information: From a drinking water hardness of 12°dH or a conductivity of 350 μs/cm, the use of appropriately treated water is necessary.



Performance data of all models at ambient temperature of 15°C, water temperature of 10°C (air-cooled appliances) and condensing temperature of 20°C (water-cooled appliances). The capacity of the storage bins and dispensers in kg represents the complete utilization of the entire bin volume available.
